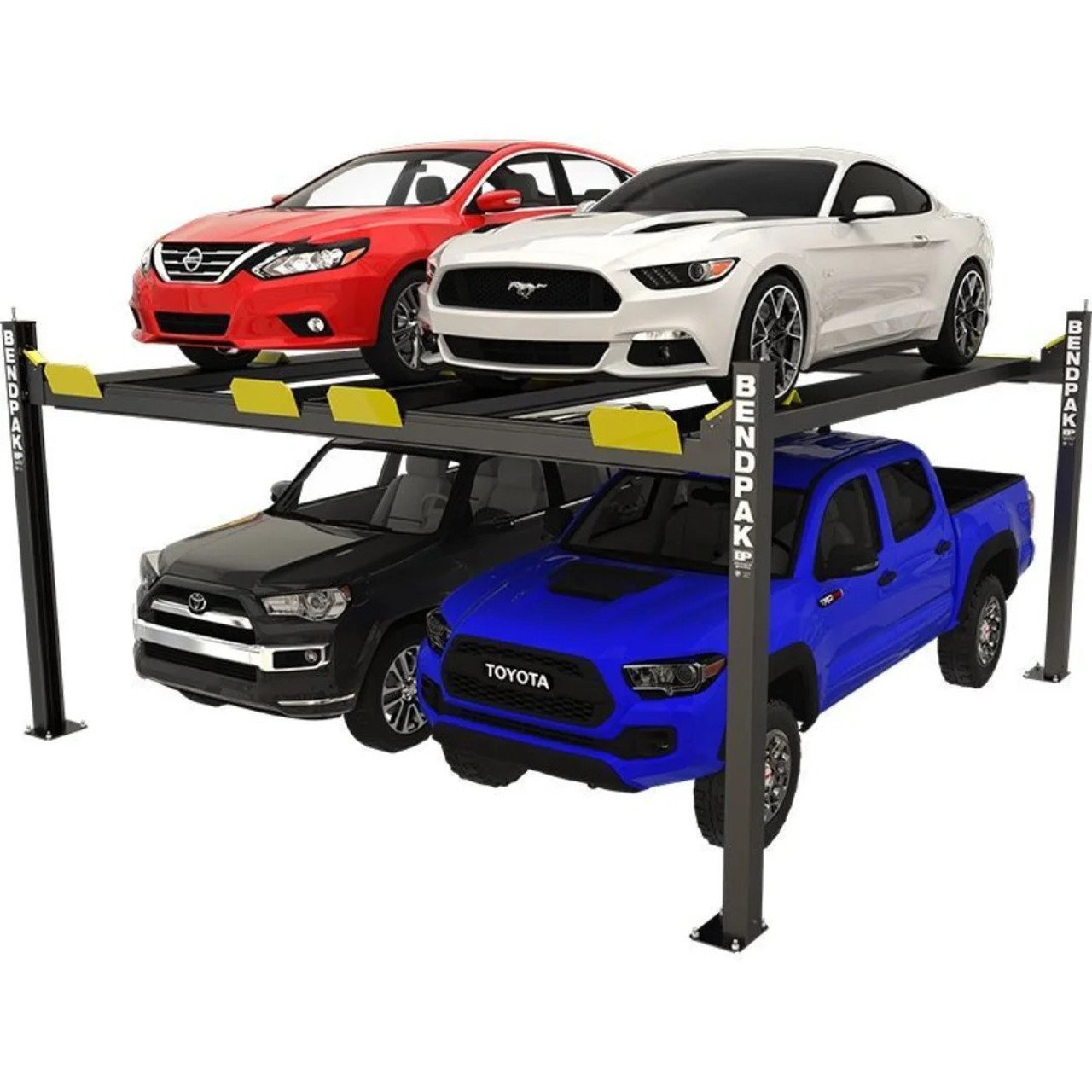

Bendpak HD-9SWX 9,000 Lbs Super-Wide 4-Post Lift

BendPak HD-9SWX 9,000-lb. Capacity Super Wide 82″ Rise 4 Post Lift

THD-9SWX is ideal for anyone who wants a little extra standing room under their lift. Plus, the runways are 24″ longer than our standard-length HD-SW. Park up to four cars, trucks and SUVs, and enjoy servicing two raised vehicles in a single lift.

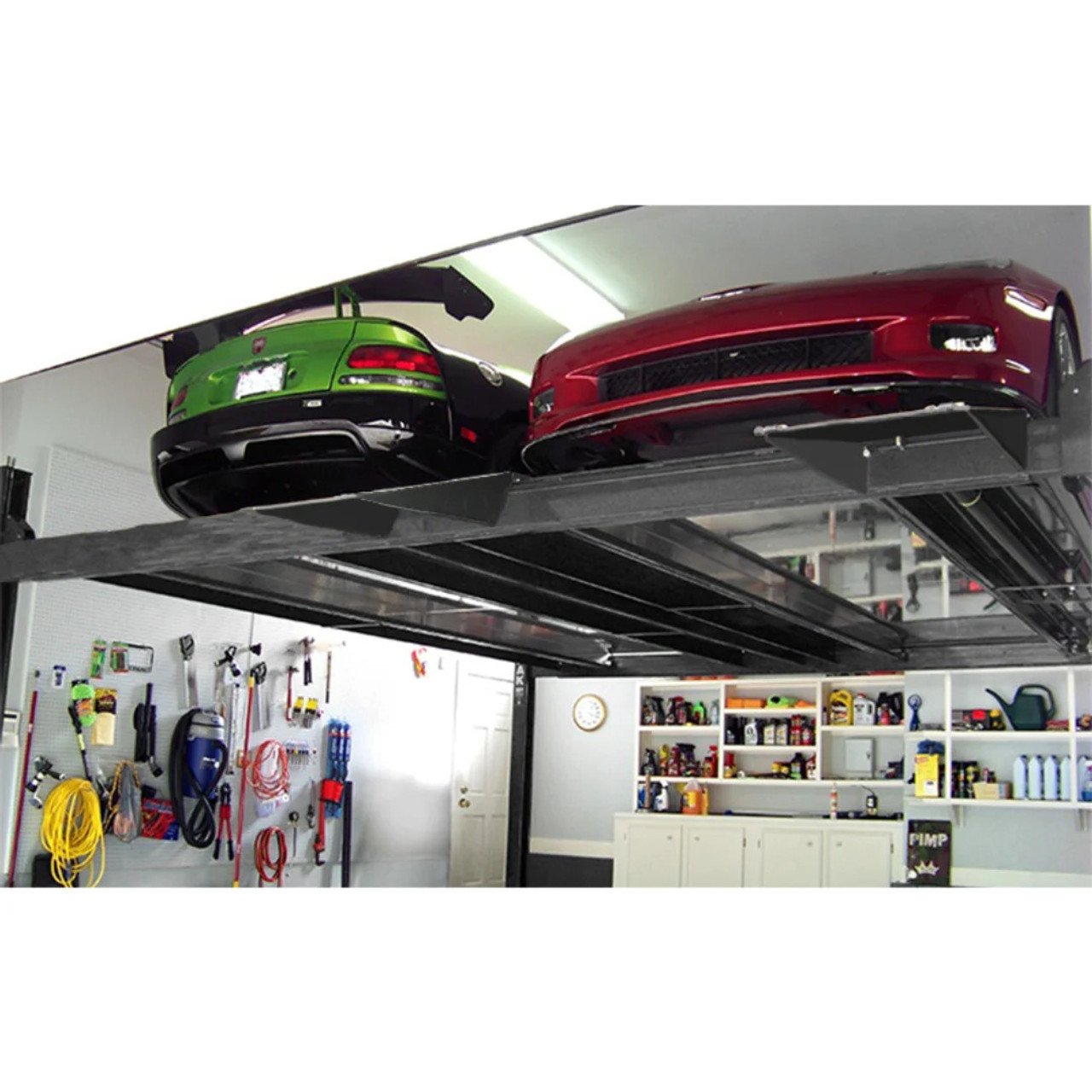

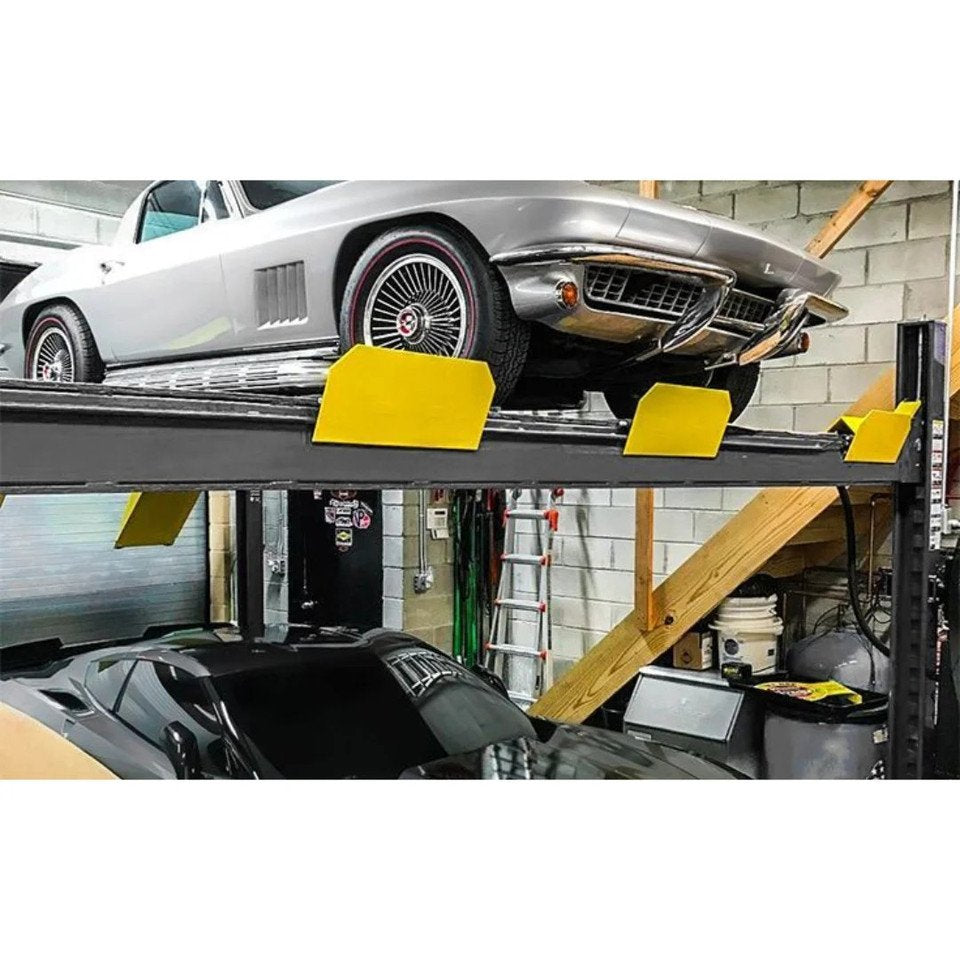

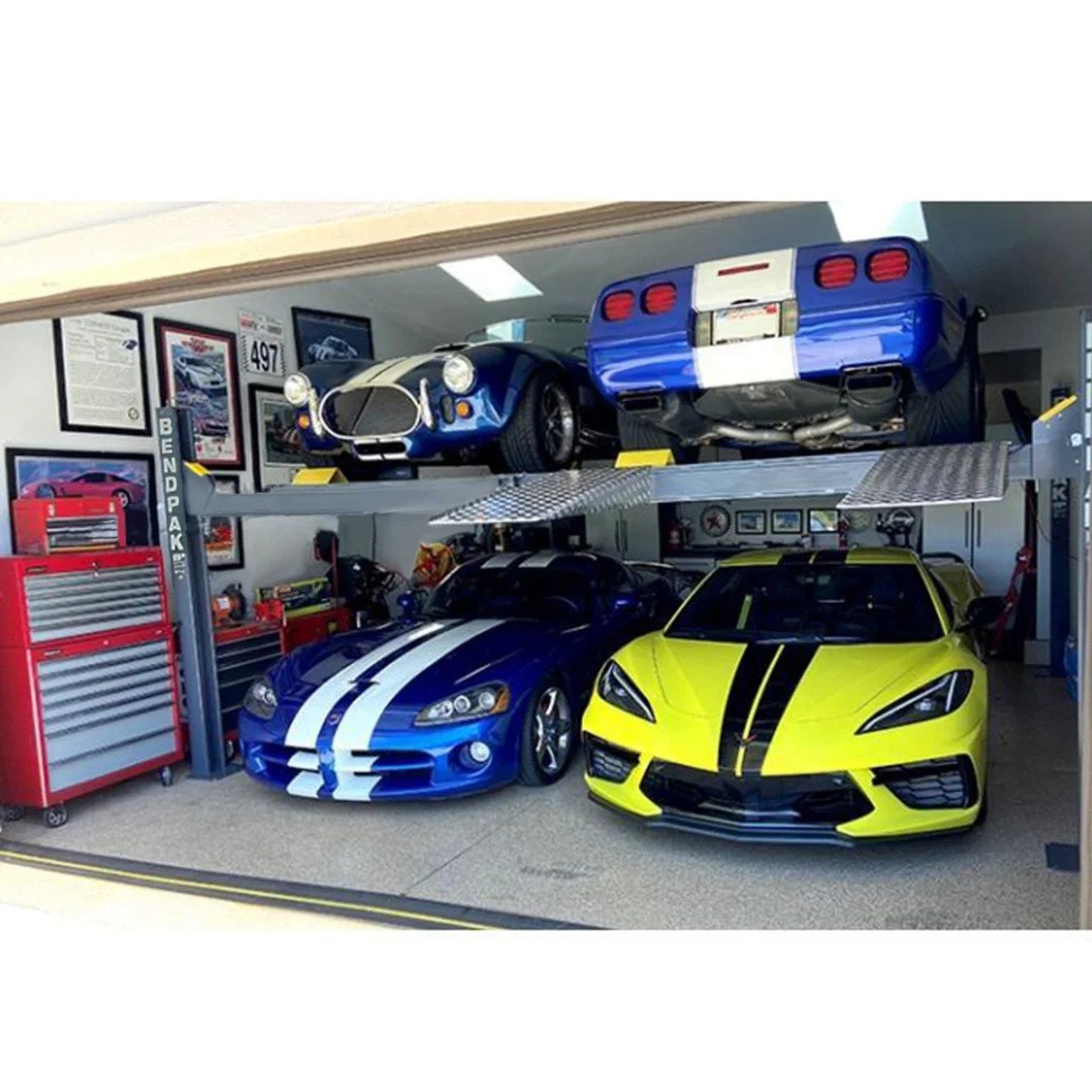

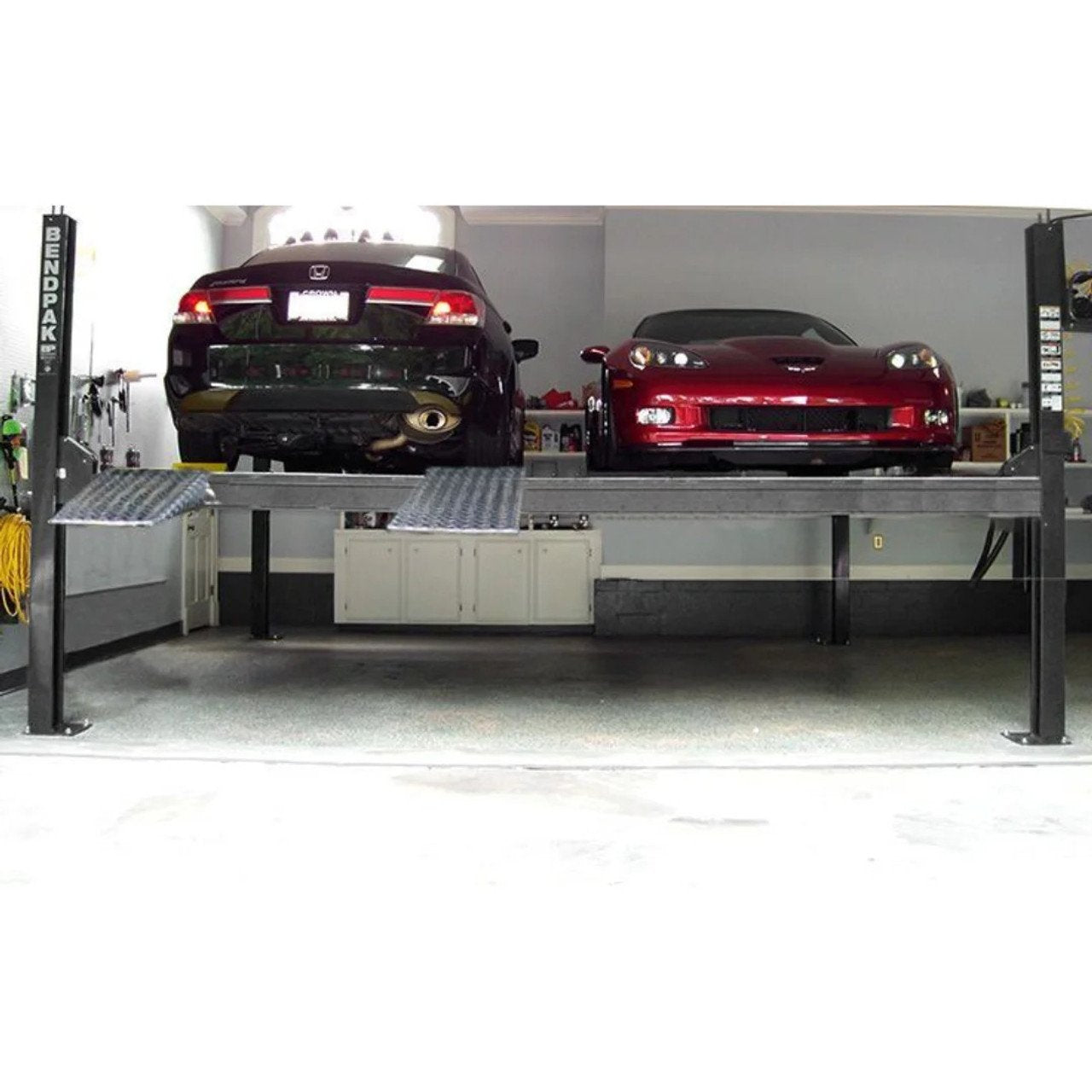

This super-wide, extended-length model is designed to transform your garage into a state-of-the-art parking facility. It turns that two-car space into a four-car trophy stand. The HD-9SWX is an extended length model with higher rise to provide exceptional clearance underneath. The extra dimensions are particularly useful for parking or servicing long-wheelbase vehicles.

The best thing about this car lift is how easy it is to use. Low-stance vehicles glide onto the runways without risking damage to the chassis. It’s a smart solution for family garages and professional spaces. Auto shops sometimes prefer large lifts like the HD-9SWX because their techs need equipment that allows them to work on virtually anything that rolls through their doors. The 9,000-lb. capacity of this lift (4,500 lbs. max per car, per side) covers sedans and sports coupes. If you do need to step up into the next category of lifting, BendPak has four-post lift options, from the 14,000-lb. capacity HDS-14 series to the 40,000-lb. capacity HDS-40.

Features

• 9,000-lb. maximum lifting capacity.
• Freestanding design.
• Perfect for parking, storage and service.
• Double-wide configuration for quad-vehicle storage.
• Four runways.
• Super-tall rise.
• Extra-long ramp.
• Runways accommodate wide or narrow vehicles.
• Runways include rail-kit for optional accessories.
• Electric / hydraulic power system.
• Single hydraulic cylinder mounted underneath runway.
• Fully enclosed lifting cables, safety locks and sheaves.
• Internal anti-sway slider blocks in each column.
• Oversized self-lubricating cable rollers.
• Oversized sheave diameter reduces cable fatigue.
• High-speed lifting.
• Features heavy-duty 3/8″ aircraft cable.
• Rugged 1.25″ roller axles.
• Multi-position safety locks in each column.
• Adjustable lock ladders.
• Runways feature non-skid surface.
• Push-button pneumatic safety release.
• Independent backup slack-cable safety latches.
• Inside runways adjust for different tread widths.
• Customizable power unit location.
• Removable approach ramps for additional drive-under clearance.
• Optional drive-thru ramps available.
• Optional drip trays available.
• Optional solid deck available to increase storage capacity.
• Optional 4,500-lb. air / hydraulic rolling jacks available.

Specifications

1. The combined weight for both Vehicles on the Runways cannot exceed 9,000 lbs.
2. Overall Width is defined as the dimension outside-to-outside of the Baseplates. Use the Overall Width listed here for creating chalk lines.
3. The Runways support less weight than its rated capacity if the Vehicle’s wheelbase is shorter than 135.00″. This is because the wheels are closer to the middle of the Runways, where there is less strength. For example, the maximum weight allowed on the Lift for a Vehicle with a wheelbase of 85.00″ is 50 percent of the Lift’s rated capacity (or 4,500 lbs. when the rated capacity is 9,000 lbs.).

*Specifications subject to change without notice.
