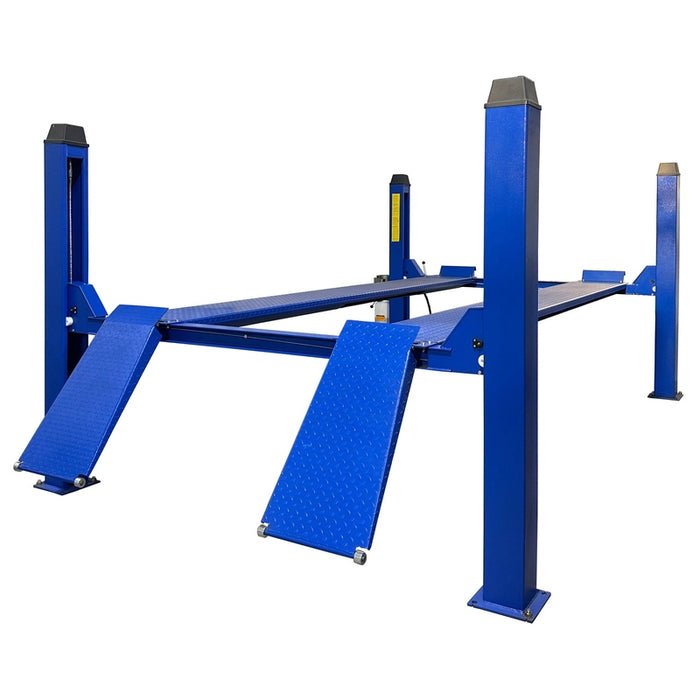

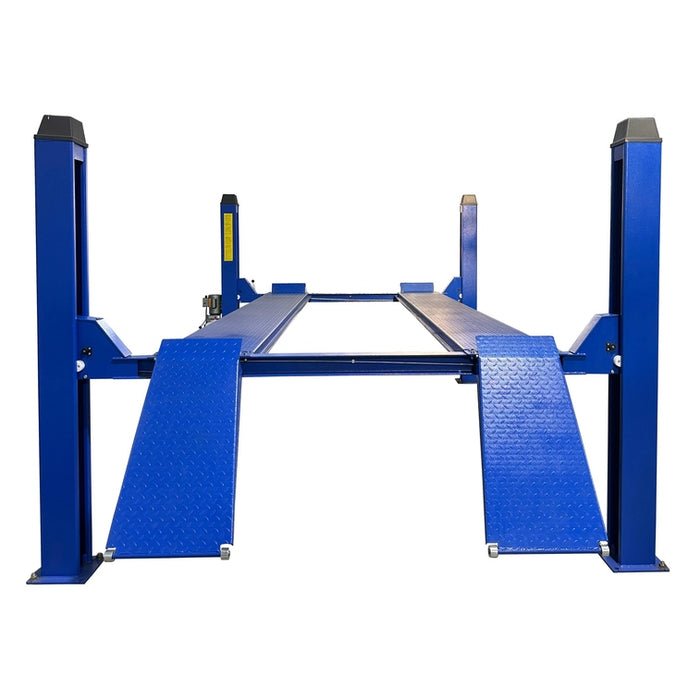

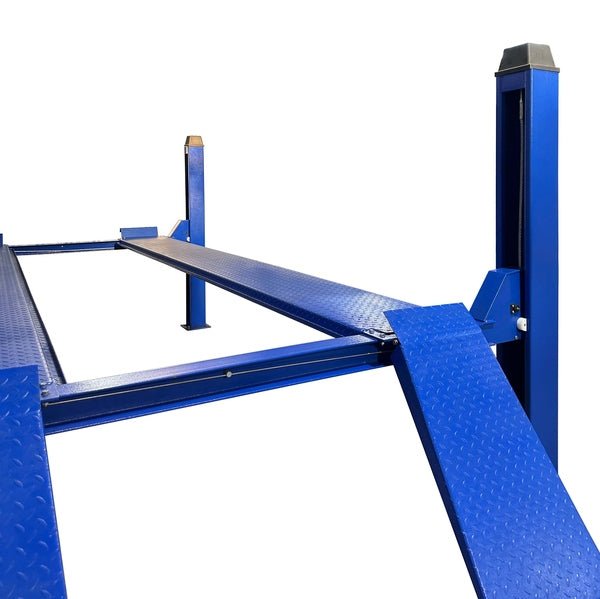

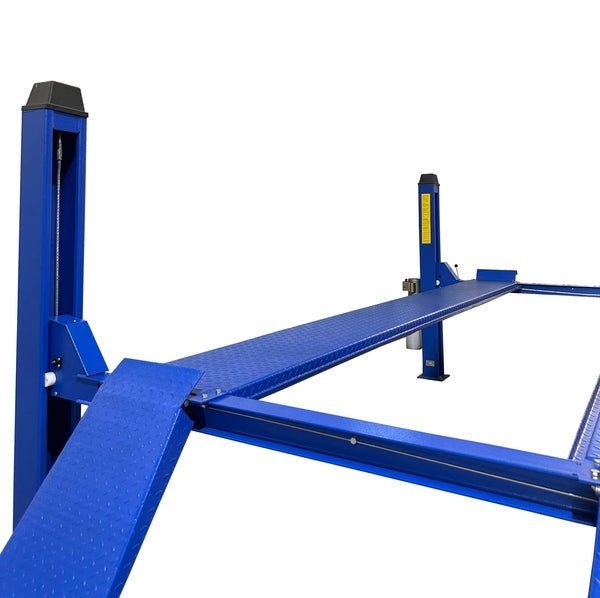

Tuxedo 12,000 lb Four Post Lift – Cable Driven
–
*Jack sold separately

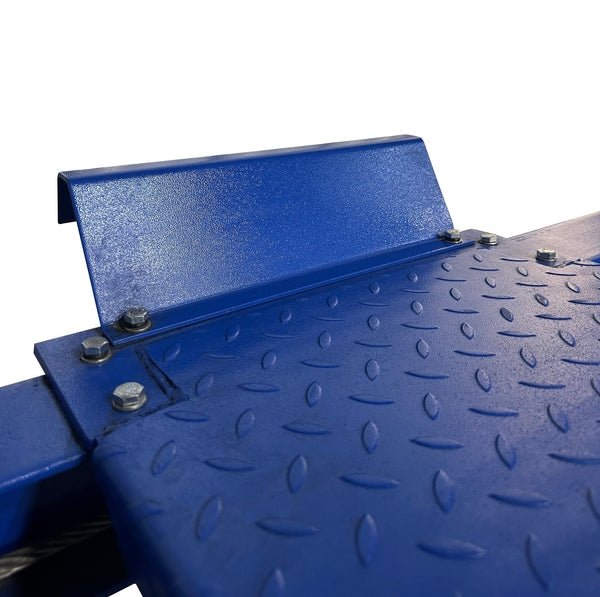

Cable driven four post lift provides 12,000 lb. lifting capacity. No power beam; Cylinder stowed under single piece diamond plate track. Simple, lever release system and redundant safety locks.
Features
–
- 12,000 lbs Capacity

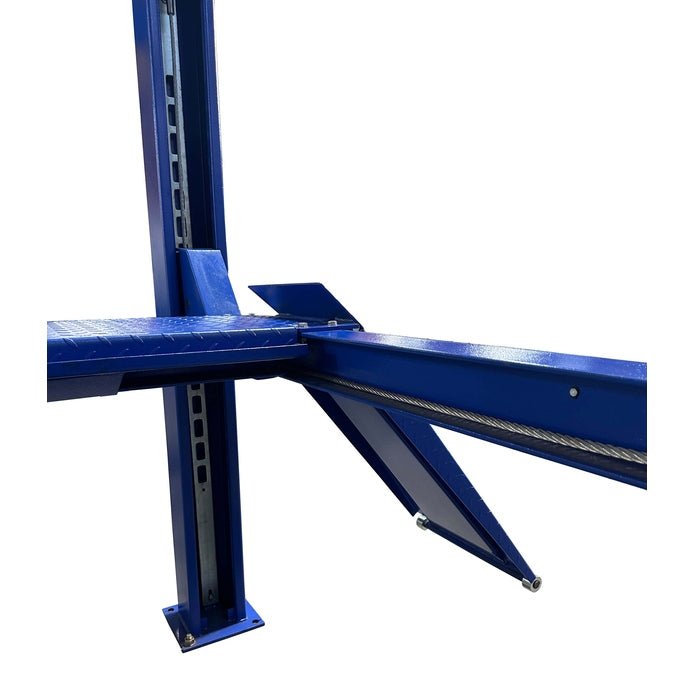

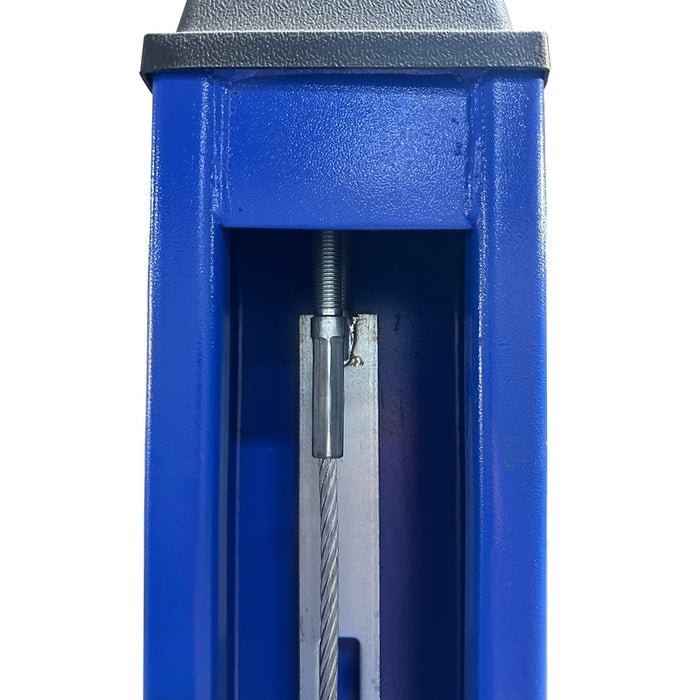

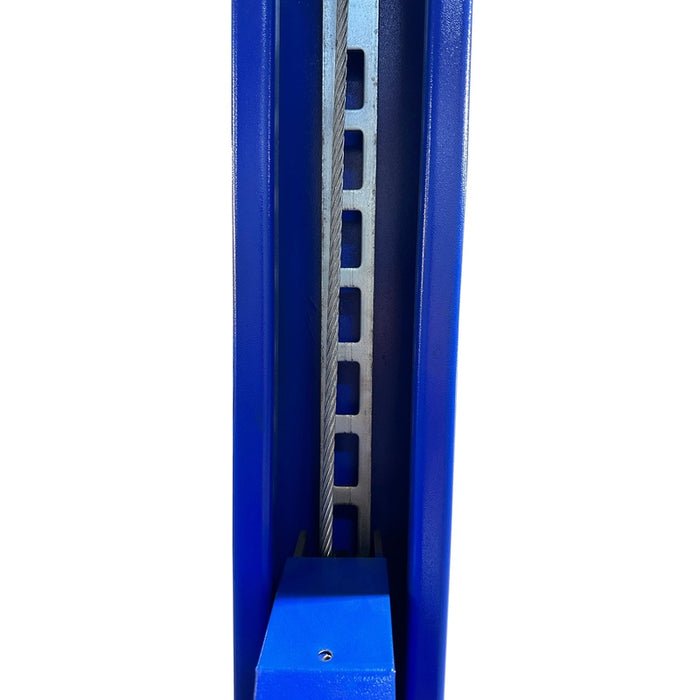

- Cable Driven
- 176 max wheelbase

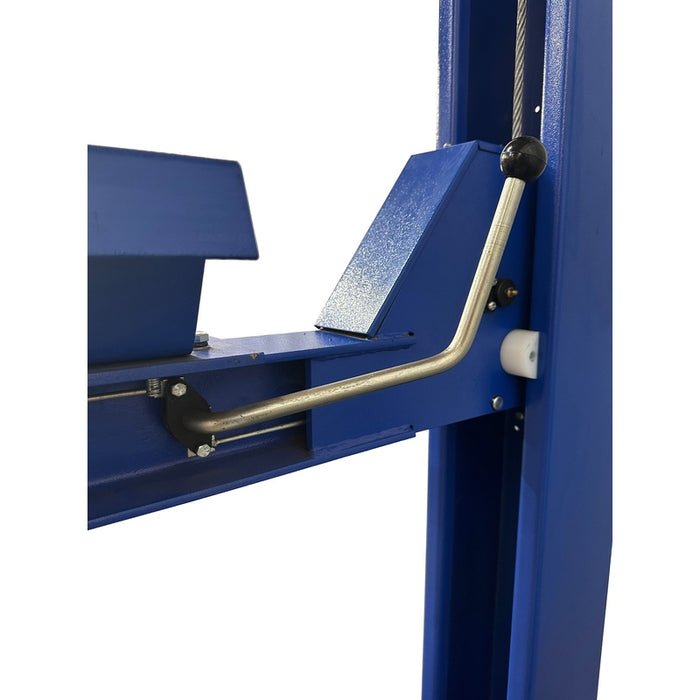

- Single Point Manual Lock Release
- Adjustable Locking Positions
- Slack Cable Safety
- No Overhead Obstructions
- Powder Coat Finish
Specifications
–
| Lift Model | FP12K-K |
| Capacity | 12,000 lbs. |
| Overall Length w/Ramp | 232-1/2″ |
| Overall Width(Without Power Unit) | 123″ |
| Overall Width (With Power Unit) | 134″ |
| Overall Height | 84″ |
| Max Rise Height | 67-1/2″ |
| Min Height | 7″ |
| Width Between Posts | 105″ |
| Length Between Posts | 177″ |
| Width Between Runways | 36-1/2″ |
| Width Of Runways | 19″ |
| Max Wheelbase | 167″ |

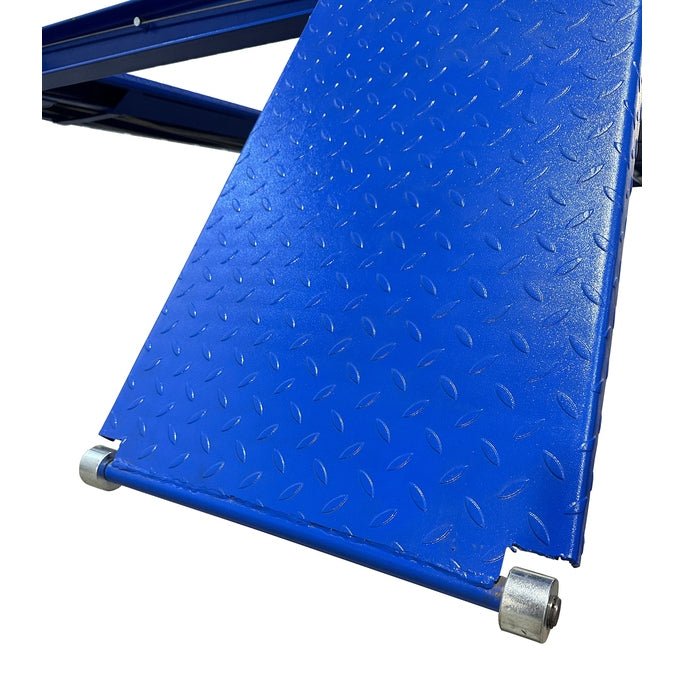

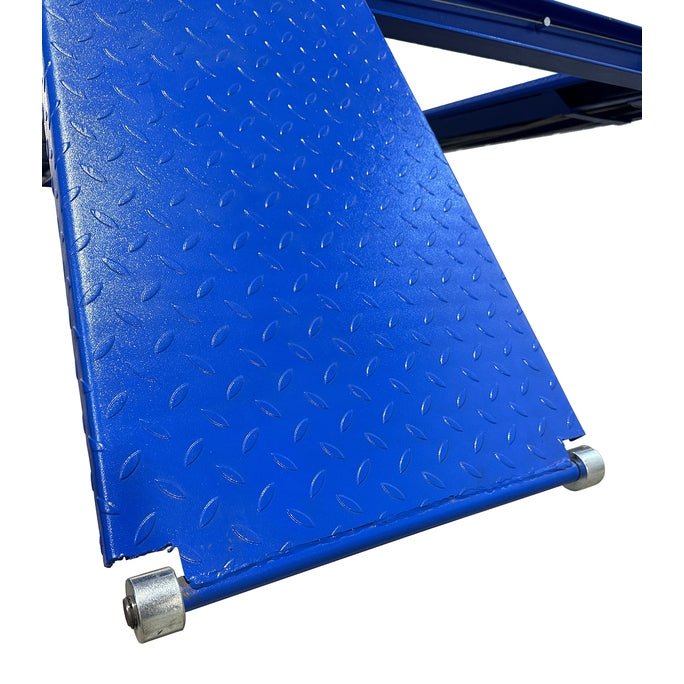

| Ramp Length | 35″ |
| Max. Clearance Under Runway | 63-1/4″ |
| Drive-Thru Clearance | 87-1/2″ |
| Base Plate | 11″ X 11″ |
| Power Requirement | 220V – 20 Amp – 1PH |
| Ship Weight | 2,255 lbs. |
| Min Bay Size | 15″ x 23″ |
