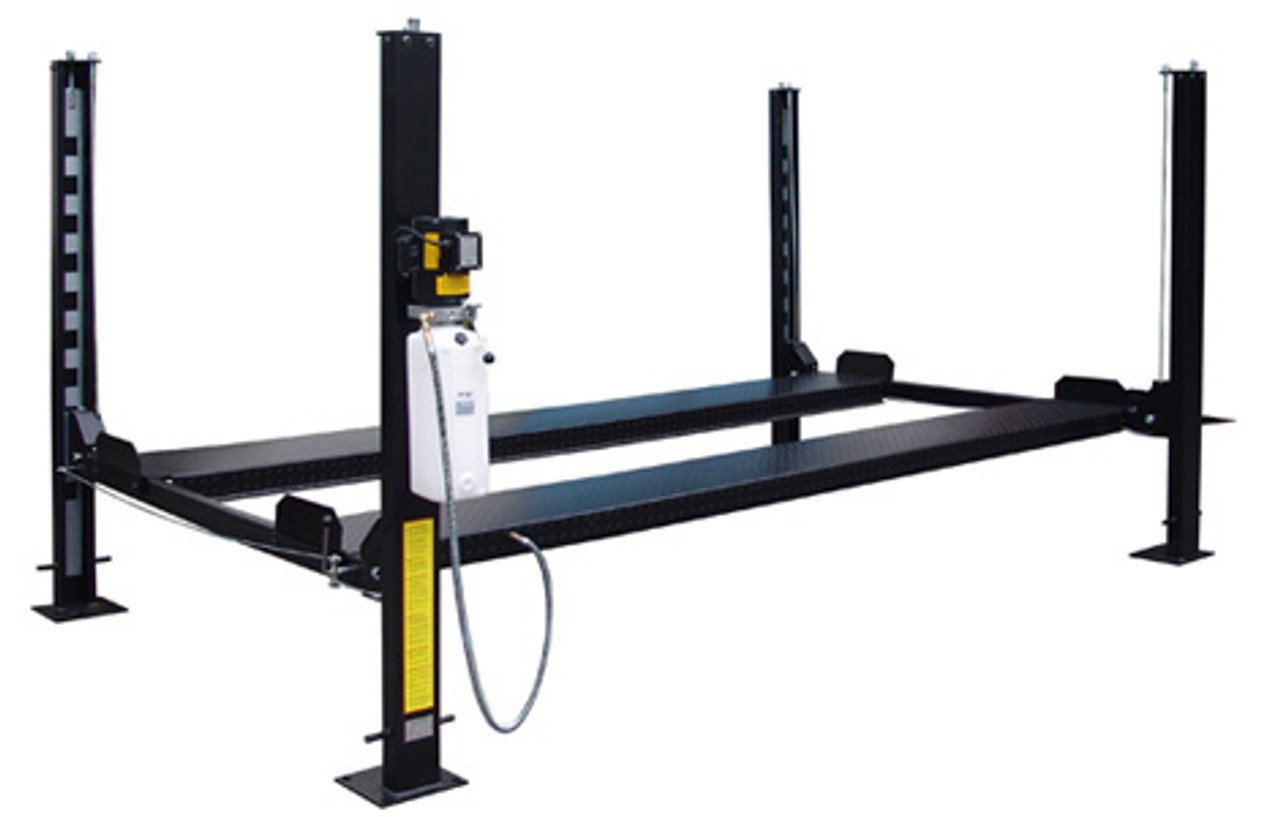

TUX FP8K-B Basic Storage Lift 8,000lb 4 Post Parking Lift
IN STOCK
FEATURES
- 8,000 lb lifting capacity
- Carriages completely enclosed for safety
- Internal lock ladder safety system with “auto engage” locking bar in the event of cable failure
- Extra large slider blocks for added stability
- 10 lock positions
- Aircraft quality cables rated at 14,500 lbs
- 18″ wide runways formed with one-piece 3/16″ non-skid diamond plate
- Easy operation: Lock release handle located near power unit
- Large 3″ diameter cylinder
SPECS
| Capacity | 8,000 lbs. |
| Lifting Height | 74.8″ |
| Overall Length w/Ramp | 207.3″ |
| Overall Length w/No Ramp | 175.5″ |
| Overall Width | 103.5″ |
| Runway Tread Width | 18.7″ |
| Runway Length | 165.5″ |
| Runway Height | 4.3″ |
| Column Height | 86″ |
| Clearance Between Columns | 94.4″ |
| Clearance between Runways | 37.2″ |
| Outside Runway to Outside Runway | 74.8″ |
| Clearance Under Runways | 70″ |
| Drive Thru Width | 80″ |
| Locking Positions | 10 |
| Base Plate Size | 10” x 12 |
| Power | 110V-20 Amp / 1PH |
| Ship Weight | 1,695 lbs |
